Sleeve heat shrinkable single-walled 2:1 holding 135°C, very flexible

Détails :

The thin-wall heat shrink tubing Type PF2-135 is an essential solution for professionals looking for a reliable product for insulation, protection or identification of cables and components. The sleeves distributed by ACLP are made in Europe, therefore of very high quality. They are made of crosslinked polyolefin. This tubing combines flexibility, robustness and high thermal performance. Sound shrink ratio 2:1 allows him to marry closely cylindrical shapes, even slightly irregular ones, which facilitates sheathing operations in workshop or on site.

Thanks to its excellent electrical properties, with a dielectric rigidity of 20 kV/mm, it effectively isolate connections in electrical cabinets, cable bundles or sensors. Its behaviour at high temperature (up to 135°C continuously) and its resistance to thermal ageing allow its sustainable use even in environments subjected to intense thermal cycles, such as industrial maintenance or integration of on-board equipment. In black, the tubing is also UV resistant, making it suitable for outdoor installations.

In terms of safety, it is classified as self-extinguishing according to UL 224 (excluding transparent version) and does not drop in case of overheating, thus limiting the risk of fire spreading. It meets several recognized industrial standards such as AMS-DTL-23053/5, UL 224, CSA C22.2 and the RoHS and REACH environmental directives.

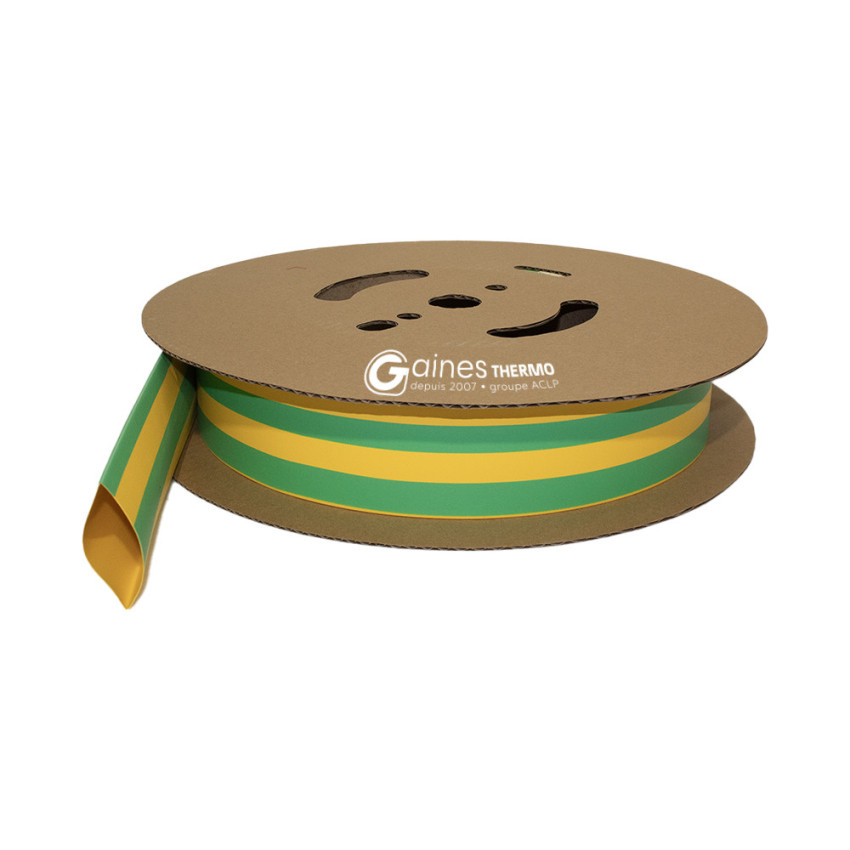

Easy to store, flexible to handle even at low temperature, thin-wall heat shrink tubing Type PF2-135 is available in a wide range of diameters (from Ø 0.6 mm to Ø 101.6 mm) and in different colours according to the identification requirements. It is delivered in bars of 1 m or in coils, with lengths up to 150 m. This packaging flexibility makes it easy to integrate into a manufacturing, wiring or maintenance process, both for specific uses and for serial requirements.
