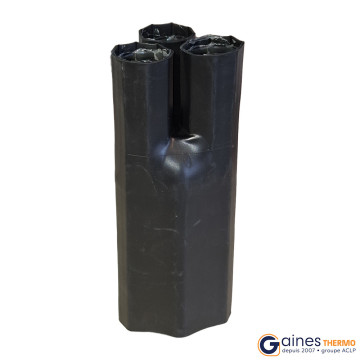

Heat shrinkable cable breakout 1 entrance, 2 to 5 exits

In the case of a cable with 2 to 7 conductors, you want to connect the conductors separately. The room that will allow you to carry out this operation in the rules of art is a heat shrinkable cable breakout available in exits from 2 to 7 drivers. It is an essential finish in outdoor or vibrating environments. It also guarantees electrical safety by preventing accidental contact.

Prior to the introduction of heat shrinkable cable breakout of 5 outputs, you must perform the following operations :

1. Cut the cable and the 5 conductors,
2. At about 20 cm from the cut, accurately cut the tubing encased the 5 drivers, and removed. The 5 drivers are released and pre-isolated in their tubing of colour,
3. If necessary, slip a tubing heat shrinkable with thin wall on each of the 5 conductors, and retract it,

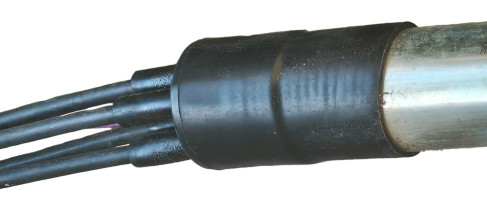

4. Slideheat shrinkable cable breakout on the 5 conductors, until the single entry covers the main cable,

The first steps are done, you can retract theheat shrinkable cable breakout :

1. By means of hot air gun, retractheat shrinkable cable breakout, and make sure you have applied the heater on the entire room surface in order to achieve a uniform result and perfect insulation.

The choice depends on the diameter of the main cable, the number of outputs and the diameter of the outputs. Then there may be versions that are longer or shorter. The unique color is black, and all available versions are with adhesive.

It is used for electrical cables, sensor cables, automotive beams and outdoor installations. It is also used to protect yarns not used in housings or cabinets. It is common to cut a cable and direct the conductors to different and fortiori remote connections. Then theheat shrinkable cable breakout is the only solution that allows you to perform this operation in accordance with art.
