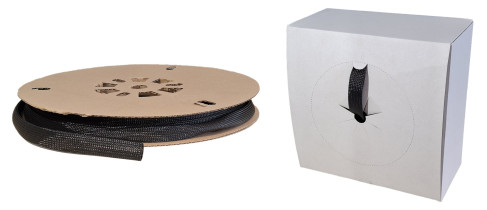

Stretch braided tubing extending from 3 to 66 mm

If you need to properly assemble cables and be able to remove the tubing If necessary, then the braided sleeving extendable is the solution. For example, from your desktop to the power outlet, you have electrical cables from the computer, printer, lamp, screen, charging station that run separately to the power outlets. It is both unaesthetic and dangerous because it is cumbersome. So wouldn't the idea be to group together all these cables as long as possible while maintaining good air circulation? Certainly! To complete this operation, please follow the following steps: :

1. Group all the cables together, shake them together by hand,
2. With a tape meter, measure the perimeter of this beam,
3. Divide this result by 3.14, you get the diameter generated by this beam, and you will be able to determine the diameter of braided sleeving expandable to order.

Example : If your beam is 13 mm in diameter, you can choose between 2 sizes of braided sleeving extendable :

• one nominal diameter of 8, useful range from 6 to 14 mm. It is imperative to check that this diameter will slip over each of the plugs of your cables, The appearance on the cable beam will be very tense!
• or nominal diameter of 12, with a useful range of 10 to 22 mm. The result will be more loose, and the meshes of the tubing tighter, and therefore a more aesthetic result.

Let's take the steps of setting up a braided sleeving extendable :

1. Determine length of braided sleeving extendable, this is to measure the maximum distance over which to keep the cable beam tight,
2. You ordered your braided sleeving in reel or meter from electrical connection.fr. The tubing is cut by means of a heated blade which annihilates the slashes,
3. Pass the end of the braided sleeving expansible above the farthest plug, then above the 2nd, .... and slide the braided sleeving extendable as far as possible, i.e. until the beginning of the beam you were able to tighten,
4. End end end of the braided sleeving expandable comes to stop at the end of the beam that you could tighten. Your sock or braided sleeving expandable is now in place. You get an aesthetic and secure result. The visual rendering is that of a braided cable.

Another example of use of the braided sleeving expandable concerns professional drones. Indeed, they need both to transport a fluid from the ground to the drone and also to have a wire that will come to support the hose. These two elements must be combined as closely as possible. And the solution must be light, not easily clinging to obstacles (for example, roofing), and be able to be slipped over long lengths at one time (up to 100 m). The solution found and validated by dozens of dronists is the setting up of a braided sleeving expandable.

The braided sleeving extendable is an interesting complement to the heat shrinkable tubing. In both cases, a set of cables is required. But while tubing heat shrinkable will fill all spaces and games by retracting, while maintaining its flexibility, braided sleeving stretch will remain elastic transversely, and its flexibility is excellent. Contrary to a perceived idea that braided sleeving expandable or low-end and superfluous product, this is wrong and we have just shown it to you with some examples mentioned above.

You too are convinced that this product can meet your needs. ACLP, your number 1 distributor of heat shrinkable tubing, will advise you if you need to focus more on a braided sleeving extendable rather than a tubing thermoretractalor even one self-melting tape.
