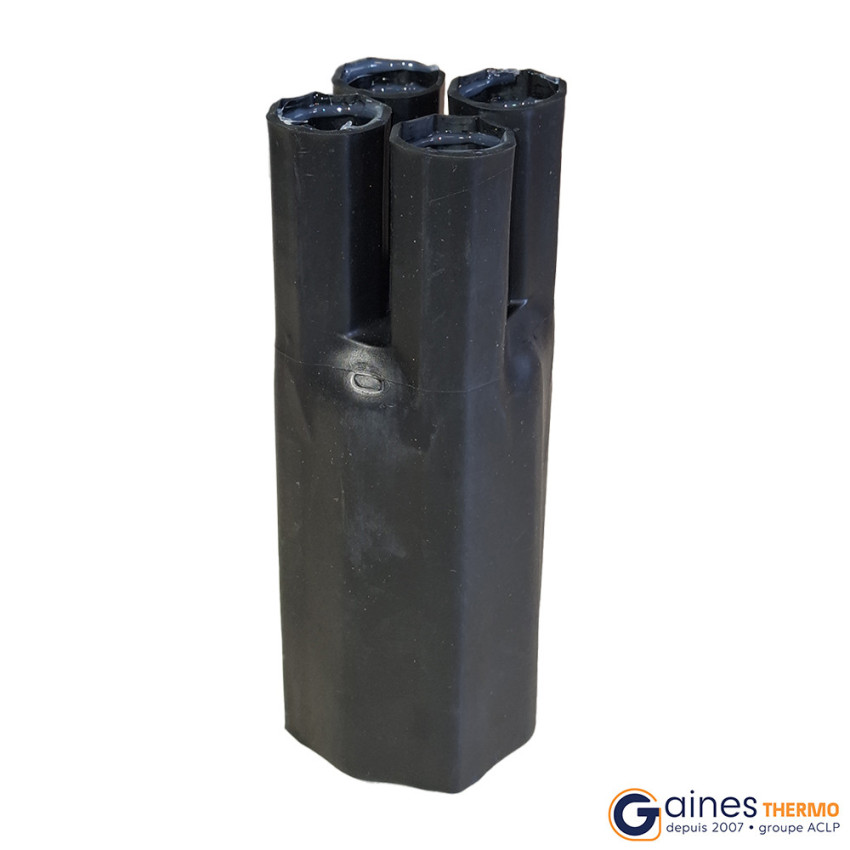

Heat shrinkable cable breakout 1 Entrance and 4 Exits

Détails :

Lheat shrinkable cable breakout 1 input / 4 outputs is designed to divide a cable into four separate outputs while ensuring the isolation and protection of each branch. This component achieves an orderly quadrifurcation, ideal for managing multiple conductor cables (e.g. a 4-conductor phase + neutral + earth cable, or a four-way control beam). In a single piece, it replaces more complex assemblies to distribute a source cable to four directions. It is used in particular to organize star connections in an electric cabinet – a single multi-conductor cable that can supply up to four different devices or terminals. Similarly, in a lighting or telecommunications network, this 4-outlet sleeve allows the signal or power to be sent to four destinations from a single entry point, while maintaining a total sealing of the branch line. In summary, this 1 inlet / 4 outlet end facilitates the connection and diversion of cables when multiple outlets are required, without compromising the safety or clarity of the wiring.

Implementation of the quadrifurcated sleeve is intuitive and efficient. Each end of the main cable and the four subconductors is inserted into the corresponding opening of the pre-cast room. Under the effect of a heat source (hot air gun or suitable torch), the heat-retractable body contracts around the beam. Thanks to a high tightness ratio, the tip adjusts closely both on the large diameter of the input cable and on the smallest diameters of the four outputs – ensuring easy installation and perfect fit. During the tightness, the internal adhesive liquefies and comes to marry each driver, filling the slightest gap. Once cooled, this mastic forms a continuous cohesive layer that literally welded the tip to the cable. The result is a sealed junction: water, air and dust are excluded, and each bypass is isolated from the others. Despite the multiplication of branches, the assembly remains clean and playless, avoiding any accidental slipping or tearing. The assembly benefits from good mechanical resistance – the sleeve firmly maintains the four bypasses, thus reducing the risk of excessive traction on internal connections. The installer therefore benefits from an "all-in-one" solution that greatly simplifies the creation of quadruple bypasses, without the need for moulding resin or additional collars.

In practice,heat shrinkable cable breakout 1 input / 4 outputs finds its place in a variety of technical configurations. It is frequently used in low voltage distribution networks to dispatch power to several subcircuits from a main cable (e.g. distribute the current to four departures in a neighborhood box or a general picture). The electricians use it for connecting cables to 4 conductors: it allows easy separation of phases and neutral of a 3Ph+N cable, each wire being guided to its connection while remaining protected from others. This tip is also popular for industrial electrical cabinets where a single multi-brain beam must supply several modules – the heat-retractable quadrifurcation ensures clear identification and insulation of each track, simplifying subsequent maintenance. Outside, it is found in some lighting or signalling applications requiring star distribution waterproof (e.g. distributing power from a lamp to four headlamps or equipment in the vicinity). Each time, the ease of installation and the watertightness achieved ensure a saving of time and greater reliability compared to traditional bypass methods.

Robust and secure, end 1 input / 4 outputs ensures overall protection of the connection against environmental attacks. Its quality crosslinked polyolefin composition is resistant to weather and ageing: the material remains stable under intense UV or prolonged sunlight, avoiding cracking and degradation due to the sun. In addition, the internal sealing provided by the adhesive layer completely blocks the moisture – even in a very humid atmosphere or in case of temporary immersion, the assembly remains dry and functional. This barrier effectively protects conductors from corrosion and prevents any leakage of external current. The tubing also supports temperature variations without weakening (typical use range from -40 to +110°C), which covers most conditions of use on site. Its halogen-free feature adds to safety in the event of fire, limiting the spread of flames and toxic fumes. Finally, resistance to the chemical agents (hydrocarbons, light acids, bases) of polyolefin ensures that the sleeve retains its insulating properties even when exposed to industrial or agricultural pollutants. Ultimately, the heat-retractable 1 input / 4 output quadrifurcation part guarantees reliable multipoint connections, Waterproofand sustainable, perfectly adapted to the requirements of electricity professionals.
