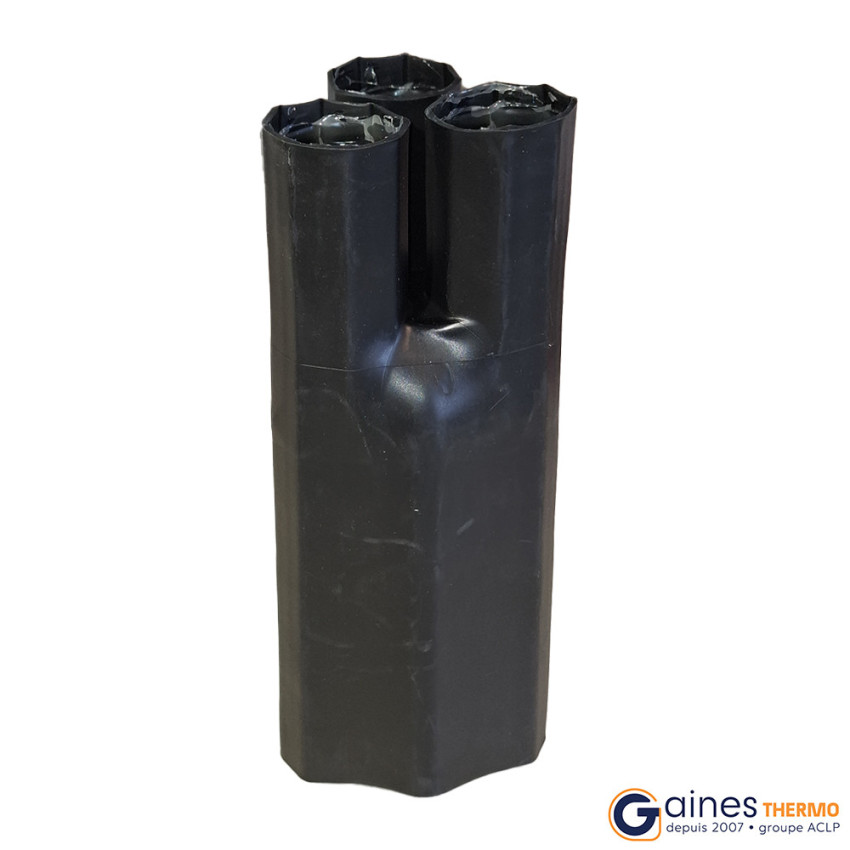

Heat shrinkable cable breakout 1 Entrance and 3 Exits

Détails :

With its 1 input / 3 output format, this heat shrinkable cable breakout allows a cable to be separated into three outputs in a safe and orderly manner. It is particularly suitable for trifurcated bypasses of tripolar cables (e.g. for a three-phase network), where three conductors must be insulated and routed to separate connection points. In common use, this sleeve 1 to 3 serves both to create a star bypass on a power cable and to complete a multipair cable by distributing its conductors. For example, it is used to connect a main cable to three secondary equipment or lines. For a public lighting candelabre, this room can accommodate the arrival cable, the starting cable and the departure to the lantern, thus ensuring a bypass waterproof to the luminaire while continuing the distribution downstream. In any case, the thermo 1 input 3 outputs end guides the conductors who "spun" in bundles towards different directions without constraint, guaranteeing a clear and secure organization of wiring.

The installation of this trifurcated breakout is facilitated by its thermoretractable design with high diameter reduction. After inserting the cable and its conductors into the three outlets, applying a uniform heat source causes the room to retract around the whole. Its material offers a high restriction rate, which ensures rapid implementation even in the presence of differences in sections. Internal adhesive, activated by heat, comes closely lining each conductor and the main cable. The result is an integral seal: from the moment of cooling, each branch is glued and sealed around its wire. The connection obtained is hermetic (no water or dust infiltration possible) and mechanically robust. The sleeve also relieves the conductors of physical tension by keeping them firmly in place, which offers protection against mechanical stresses (drawing, bending) on the bypass. In a few minutes, we get a clean trifurcated bypass, waterproof and secure, without the need for additional ribbons or resins.

Designed to last, the heat-retractable cap 1→3 offers enhanced protection against external aggression and aging. It is made of industrial grade crosslinked polyolefin, combined with high-performance internal adhesive. Once in place, this structure ensures an effective barrier against water, air and contaminants: internal glue forms a coating waterproof which isolates the seal from ambient moisture and prevents corrosion of metal cores. In addition, the black material used is treated anti-UV and resistant to oxidation due to weather. Even when exposed to sunlight, rain or temperature variations, the end retains its integrity without cracking or degrading. It also tolerates commonly encountered chemical agents (oils, fuels, solvents), making it suitable for demanding industrial environments. Note that these tips are halogen-free, avoiding the emission of corrosive smoke in the event of a fire. Finally, its holding in temperature (-40 °C to +110 °C in continuous operation) ensures stable performance in a harsh winter climate as well as in a cabinet subjected to high heat. These qualities guarantee reliable and sustainable diversions with theheat shrinkable cable breakout 1 entry / 3 outputs, even under the most stringent conditions.
