> Thin wall>Ratio 2:1

Thin wall heat shrink tubing 2:1 shrink, black and colours, on roll, by the meter

ratio 2:1
Flexible		RoHs, Certified UL 224
Available in sleeve, reel, rolls

Guide to heat shrink sheath sizes- Other ratio available - Ratio 3:1 - Ratio 4:1
For waterproof applications use the waterproof sheath

Ratio 2:1 There are no products in this category.

Subcategories

  • Resistance up to 125°C

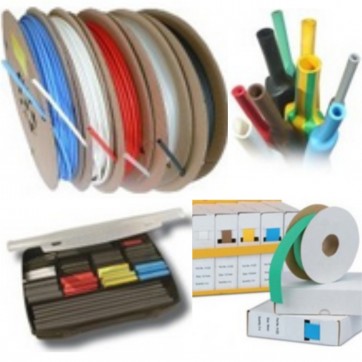

    Resistance up to 125°C

    Heat-shrink tubing ratio 2:1 held 135°C black colors transparent - PF2-135

    • Ratio 2:1
    • Operating temperature -55° to +135°C
    • Shrink temperature >90° C
    • Dielectricity: 20 kV/mm
    • Type: PF2-135
    • Flexible
    • flame retardant and self-extinguishing (except transparent)
    • RoHs and REACH
    • Certified UL 224 125°C
    • Available in reel or bar

    fiche technique et utilisation gaine-thermoretractable Type PF2-135 Heat Shrink wall sheath technical sheet ratio 2:1

    Diameter from 0.6 mm to 152.4 mm in length of 1.22 M or reel from 15 to 150 M (depending on sizes)
    This sheath has excellent chemical and physical dielectric qualities, it can cover elements of similar diameters, it is suitable for areas such as electrical insulation, covering of bare electrical wire, equipment, marking and identification.
    If you need waterproof, click Waterproof Heat Shrink Tubing with Resin
    Find in one click all sizes packaging and colors on the guide to heat shrink sheath sizes

  • Resistance up to 105 °C eco

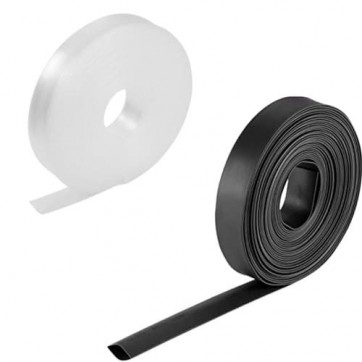

    Resistance up to 105 °C eco

    Economic Heat Shrink sheath 2:1 resistant up to 105°C - PF2-105

      • ratio 2:1
      • Operating temperature -55° to + 105°C
      • Dielectricity: 15 kV/mm
      • Brilliant and very transparent
      • Type: PF2-105
      • Flexible
      • Not flame retardant
      • longitudinal shrinkage below +/-5% shrinkage below +/-5% shrinkage
      • ROHS

    fiche technique et utilisation gaine-thermoretractable Type PF2-135 Heat Shrink wall sheath technical sheet ratio 2:1

    Also available in: heat shrink sheath 2:1 resistant up to 125°
