Heat-shrink tubing ratio 2:1 held 135°C black colors transparent - PF2-135

  • Ratio 2:1
  • Operating temperature -55° to +135°C
  • Shrink temperature >90° C
  • Dielectricity: 20 kV/mm
  • Type: PF2-135
  • Flexible
  • flame retardant and self-extinguishing (except transparent)
  • RoHs and REACH
  • Certified UL 224 125°C
  • Available in reel or bar

fiche technique et utilisation gaine-thermoretractable Type PF2-135 Heat Shrink wall sheath technical sheet ratio 2:1

Diameter from 0.6 mm to 152.4 mm in length of 1.22 M or reel from 15 to 150 M (depending on sizes)
This sheath has excellent chemical and physical dielectric qualities, it can cover elements of similar diameters, it is suitable for areas such as electrical insulation, covering of bare electrical wire, equipment, marking and identification.
If you need waterproof, click Waterproof Heat Shrink Tubing with Resin
Find in one click all sizes packaging and colors on the guide to heat shrink sheath sizes

Resistance up to 125°C There are no products in this category.

Subcategories

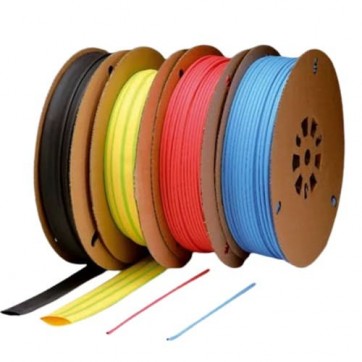

  • Reels

    Thin wall sheath ratio 2:1 resistant to 135°C in reels black colors transparent - PF2-135

    • Reticulated polyolefin sheath
    • Ratio 2:1
    • Operating temperature -55° to +135°C
    • shrink temperature 90°C
    • Dielectric resistance: 20 kV/mm
    • Type: PF2-135
    • Dielectric resistance: 20 kV/mm
    • Flexible
    • Auto extinguishable flame retardant
    • RoHs
    • Certified UL 224 125°

    fiche technique et utilisation gaine-thermoretractable Type PF2-135 Heat Shrink wall sheath technical sheet ratio 2:1

    Implementation : industrial, economic conditioning
    Available in heat shrink sheath per meter

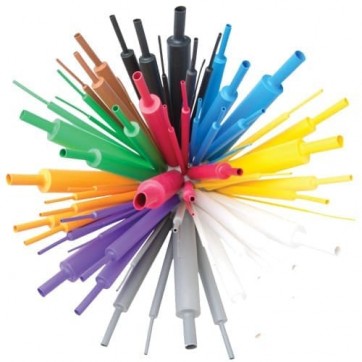

  • Sleeves

    Heat Shrink sheath ratio 2:1 resistant up

    to 135°C per metre, bar 1.22 M - PF2-135

    • Reticulated polyolefin thermo sheath
    • ratio 2:1
    • Available in 10 colors
    • Diameter 1.2 to 101.6 mm
    • Operating temperature -55° to +135°C
    • Type: PF2-135
    • Flexible
    • Very flame retardant
    • RoHs, Certified UL
    • Ecological

    Guide to color sheath sizes
    fiche technique et utilisation gaine-thermoretractable Type PF2-135 Heat Shrink wall sheath technical sheet ratio 2:1

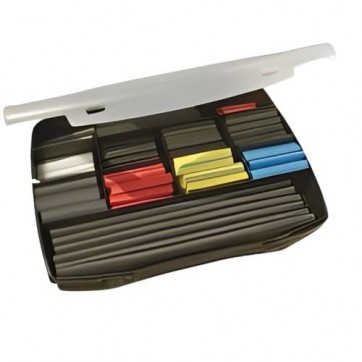

  • box assortment

    Heat Shrink sheath box black transparent color with adhesive

    ratio 2:1 3:1Flexible
    Operating temperature -55° to +135°CFlame retardant (except transparent)
    Shrink temperature ≥90°CRoHs Certified UL 224

    fiche technique et utilisation gaine-thermoretractable Type PF2-135 Assortment Box data sheet ratio 2:1

    The assortment boxes are ideal for one-time needs, the workshop for troubleshooting or maintenance on-site use.

    The sheath is cut in different lengths and available in several sizes and colors.


    We are at your disposal for all your personal needs in bags or boxes.

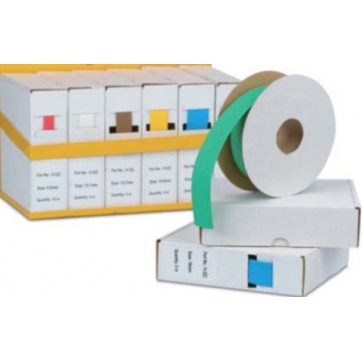

  • Dispenser box

    Ratio 2:1 diameter of 1.2 to 25.4 mm black box made of cardboard dispenser

    Heat Shrink sheath in reticulated polyolefinCertified UL
    Cardboard reelOperating temperature -55° to +135°C
    Flexible thinFlame retardant
    Available in blackType PF2-135
    RoHsEcological





    This dispenser box is really very practical everyday and will easily find its place in your store.

    These heat shrink sheaths are suitable for multiple uses such as electrical insulation, cable finishing, connections, equipment, marking, colour marking and identification, this sheath is intended for industrial, electronic applications, mechanical protection and dressing.


    Available in length of 1.22 M, rollers, in reels Single wall 15 to 150 meters long, assortment box - heat shrink colour sheaths in meter


    Need help! Discover our guide to choice - Guide to Heat Shrink Sheath Sizes find your size in one click

    fiche technique et utilisation gaine-thermoretractable Type PF2-135 Heat Shrink wall sheath technical sheet ratio 2:1

    Heat Shrink ratio 2:1 in roll
    Heat Shrink sleeve ratio 2:1
